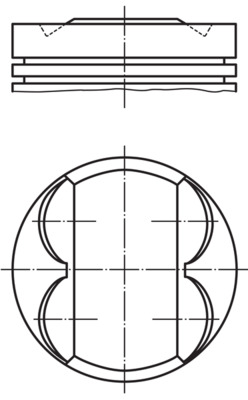

Piston MAHLE ORIGINAL 081 PI 00107 002

Brand: MAHLE ORIGINAL Cod producator
Cod OE/MPN: 081

845,00 lei

Producator: MAHLE ORIGINAL Cod producator: 081 PI 00107 002

SKU: 081 PI 00107 002 Brand: MAHLE ORIGINAL

Descriere

Piston MAHLE ORIGINAL 081 PI 00107 002

Set segmenti piston MAHLE ORIGINAL 081 RS 00101 0N2Adancime scaun supapa 1 [mm]: 2,8Adancime scaun supapa 2 [mm]: 3,3Alezaj piston [mm]: 84,5Articol completare/Info suplimentar 2: fara canal de racireCod motor: N46 B20 BDiametru bolț [mm]: 20Inaltime compresie [mm]: 29,5Inaltime perete [mm]: 5,4Joc al pistonului [mm]: 0,04Lungime bolt [mm]: 50Lungime [mm]: 50,5Numar componente: 1. R 1.2 N, 2. NM 1.5, 3. 3S 2 NNumar de productie: 84 L 177Prelucrat mecanic: cu degajare/decupare pentru diuza uleiSuprafata: anodizt durTip constructiv lansete: Biela trapez

Informații suplimentare

Greutate

0,4 kg

Compatibilitate

BMW > Seria 1 (E81) > (SERIA 1 (5114)) 1,995 cmc benzina 129 > Piston complet, BMW > Seria 1 (E81) > (SERIA 1 (5114)) 1,995 cmc benzina 156 > Piston complet, BMW > Seria 1 (E87) > (SERIA 1 (10974)) 1,995 cmc benzina 129 > Piston complet, BMW > Seria 1 (E87) > (SERIA 1 (10974)) 1,995 cmc benzina 136 > Piston complet, BMW > Seria 1 (E87) > (SERIA 1 (10974)) 1,995 cmc benzina 150 > Piston complet, BMW > Seria 1 (E87) > (SERIA 1 (10974)) 1,995 cmc benzina 156 > Piston complet, BMW > Seria 1 Cabriolet (E88) > (SERIA 1 CABRIOLET (6713)) 1,995 cmc benzina 156 > Piston complet, BMW > Seria 3 (E90) > (SERIA 3 (5389)) 1,995 cmc benzina 129 > Piston complet, BMW > Seria 3 (E90) > (SERIA 3 (5389)) 1,995 cmc benzina 136 > Piston complet, BMW > Seria 3 Cabriolet (E93) > (SERIA 3 CABRIOLET (6241)) 1,995 cmc benzina 156 > Piston complet, BMW > Seria 3 Touring (E91) > (SERIA 3 TOURING (5430)) 1,995 cmc benzina 129 > Piston complet, BMW > Seria 3 Touring (E91) > (SERIA 3 TOURING (5430)) 1,995 cmc benzina 136 > Piston complet, BMW > Seria 3 Touring (E91) > (SERIA 3 TOURING (5430)) 1,995 cmc benzina 150 > Piston complet, BMW > Seria 5 (E60) > (SERIA 5 (4993)) 1,995 cmc benzina 156 > Piston complet, BMW > X1 (E84) > (X1 (8277)) 1,995 cmc benzina 150 > Piston complet, BMW > X3 (E83) > (X3 (5085)) 1,995 cmc benzina 150 > Piston complet, BMW > Z4 Roadster (E85) > (Z4 ROADSTER (4924)) 1,995 cmc benzina 150 > Piston complet

Compatibilitati

Marca	Model	GENERATIE&MOTORIZARE	Tip piesa
BMW	Seria 1 (E81)	(SERIA 1 (5114)) 1,995 cmc benzina 129	Piston complet
BMW	Seria 1 (E81)	(SERIA 1 (5114)) 1,995 cmc benzina 156	Piston complet
BMW	Seria 1 (E87)	(SERIA 1 (10974)) 1,995 cmc benzina 129	Piston complet
BMW	Seria 1 (E87)	(SERIA 1 (10974)) 1,995 cmc benzina 136	Piston complet
BMW	Seria 1 (E87)	(SERIA 1 (10974)) 1,995 cmc benzina 150	Piston complet
BMW	Seria 1 (E87)	(SERIA 1 (10974)) 1,995 cmc benzina 156	Piston complet
BMW	Seria 1 Cabriolet (E88)	(SERIA 1 CABRIOLET (6713)) 1,995 cmc benzina 156	Piston complet
BMW	Seria 3 (E90)	(SERIA 3 (5389)) 1,995 cmc benzina 129	Piston complet
BMW	Seria 3 (E90)	(SERIA 3 (5389)) 1,995 cmc benzina 136	Piston complet
BMW	Seria 3 Cabriolet (E93)	(SERIA 3 CABRIOLET (6241)) 1,995 cmc benzina 156	Piston complet
BMW	Seria 3 Touring (E91)	(SERIA 3 TOURING (5430)) 1,995 cmc benzina 129	Piston complet
BMW	Seria 3 Touring (E91)	(SERIA 3 TOURING (5430)) 1,995 cmc benzina 136	Piston complet
BMW	Seria 3 Touring (E91)	(SERIA 3 TOURING (5430)) 1,995 cmc benzina 150	Piston complet
BMW	Seria 5 (E60)	(SERIA 5 (4993)) 1,995 cmc benzina 156	Piston complet
BMW	X1 (E84)	(X1 (8277)) 1,995 cmc benzina 150	Piston complet
BMW	X3 (E83)	(X3 (5085)) 1,995 cmc benzina 150	Piston complet
BMW	Z4 Roadster (E85)	(Z4 ROADSTER (4924)) 1,995 cmc benzina 150	Piston complet
