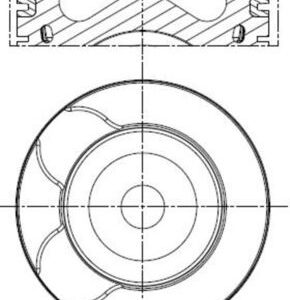

Piston KOLBENSCHMIDT 41703610 LAND ROVER FREELANDER 2 (L359) 2,179 cmc (DW12BTED4, 224DT(DW12BTED4) diesel 150 KOLBENSCHMIDT 41703610

Descriere

Piston KOLBENSCHMIDT 41703610 LAND ROVER FREELANDER 2 (L359) 2,179 cmc (DW12BTED4, 224DT(DW12BTED4) diesel 150 KOLBENSCHMIDT 41703610

Segment piston KOLBENSCHMIDT 61969; Segment piston KOLBENSCHMIDT 66738; Segment piston KOLBENSCHMIDT 66739; Adancime oala 1 [mm]: 13,5; Adancime scaun supapa 1 [mm]: 0,45; Adancime scaun supapa 2 [mm]: 0,45; Alezaj piston [mm]: 85,6; Diametru bolț [mm]: 30; Diametru oala [mm]: 52,4; Inaltime compresie [mm]: 48,7; Joc al pistonului [mm]: 0,06; Lungime bolt [mm]: 68; Lungime [mm]: 74,7; Numar componente: 61969, 66738, 66739; Numar de productie: 085236; Numar motor TECDOC: 26064; Stadiul reparatiei: 0,60; Tip constructiv lansete: Biela trapez
